Step 1: Select Inlet Size & Orientation

Step 1: Select the Inlet Size & Orientation

FB2 Series Specifications

3/4" or 1" NPT Outlet


Block Size: 2.25" W x 2.25" H
Material: 6061-T6 Aluminum Manifold Bar Stock
Finish: Anodized
Mounting Hole Size: 1/4" SHCS
Inlet Hole: 3/4" or 1" NPT
Outlet Holes: 1/4" or 3/8"

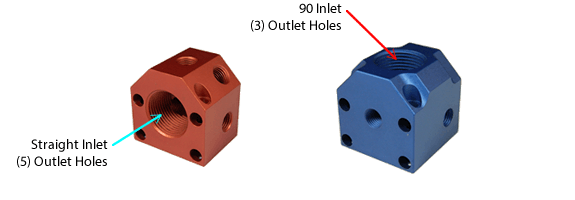

fb2 orientation

FB3 Series Specifications

1-1/4" or 1-1/2" NPT Outlet


Block Size: 3.00" W x 3.00" H
Material: 6061-T6 Aluminum Manifold Bar Stock
Finish: Anodized
Mounting Hole Size: 5/16" SHCS
Inlet Hole: 1-1/4" or 1-1/2" NPT
Outlet Holes: 3/8" or 1/2"

fb3 orientation

FB4 Series Specifications

1-1/2" or 2" NPT Outlet


Block Size: 3.50" W x 3.50" H
Material: 6061-T6 Aluminum Manifold Bar Stock
Finish: Anodized
Mounting Hole Size: 5/16" SHCS
Inlet Hole: 1-1/2" or 2" NPT
Outlet Holes: 1/2" or 3/4"

fb4 orientation
